35 sq mm 4 Core PVC Insulated Cable Stranded Copper Conductor 0.6kv 1kV

Name: 35 sq mm 4 Core PVC Insulated Cable Stranded Copper Conductor 06kv 1kV
Brand: Zhongdong
Price: 1 USD

Brand Name : Zhongdong

Model Number : NYY-J

Certification : IEC,CE,ISO,TUV

Place of Origin : Hebei，China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 7-30 days based on different qty

Packaging Details : Rolls, Wooden Drums, Steel Drums, Reels or customized

Voltage : 0.6/ 1kV

Armoring : No

Insulation : PVC

Core : Multi cores

Temperature range : - 30℃ to + 70℃

Sheathed : PVC

Contact Now

35 sq mm 4 Core PVC Insulated Cable Stranded Copper Conductor 0.6/1kV

Application

The cables for energy supply are installed in open air, in underground, indoors, in cable ducts, power stations, residental connections and street lighting as well as in subscriber networks, where mechanical damages are not be expected.

Construction

Conductor: Copper
Insulation:PVC
sheath:PVC

Feature

Rated Voltage Uo/U: 0.6/1 kV
Maximum operating voltage: 1.2 kV
Frequence: 50 Hz
Test voltage :3500 V
Permissible operating temperature at conductor:+70°C
short circuit temperature ( duration max. 5 s):160 °C
Minimum installation temperature: should not be lower than 0°C
Max. conductor permissible tensile stress: 50 N/mm²
Minimum bending radius: 15 x cable Ø

Specification

Nominal section area	Approx. overall diameter	Approx. weight of cable		Maximum DC resistance of the conductor
mm2	mm	kg/km		Ω/km
		Cu	Al	20℃ Cu	20℃ Al
4×1.5 RE	11.4	177	–	12.1	–
4×2.5 RE	12.4	226.9	164.7	7.41	12.1
4×4 RE	14.5	320.2	220.7	4.61	7.41
4×6 RE	15.7	424.1	274.9	3.08	4.61
4×10 CC	18.2	607.6	358.9	1.83	3.08
4×16 CC	20.6	861	463.1	1.15	1.91
4×25 CC	24.5	1287.4	665.6	0.727	1.2
4×35 CC	26.9	1687.4	816.9	0.524	0.868
4×50 SM	28	2295.4	1051.8	0.387	0.641
4×70 SM	31.6	3095.1	1354.1	0.268	0.443
4×95 SM	35.9	4146	1783.2	0.193	0.32
4×120 SM	38.5	5125.7	2141.1	0.153	0.253
4×150 SM	42.8	6379.9	2649.2	0.124	0.206
4×185 SM	48.4	7849.2	3248	0.0991	0.164
4×240 SM	53.5	10084	4114.8	0.0754	0.125
4×300 SM	59.2	12526.3	5064.8	0.0601	0.1

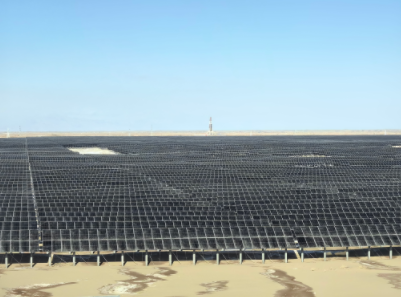

Case

35 sq mm 4 Core PVC Insulated Cable Stranded Copper Conductor 0.6kv 1kV
